材料備件

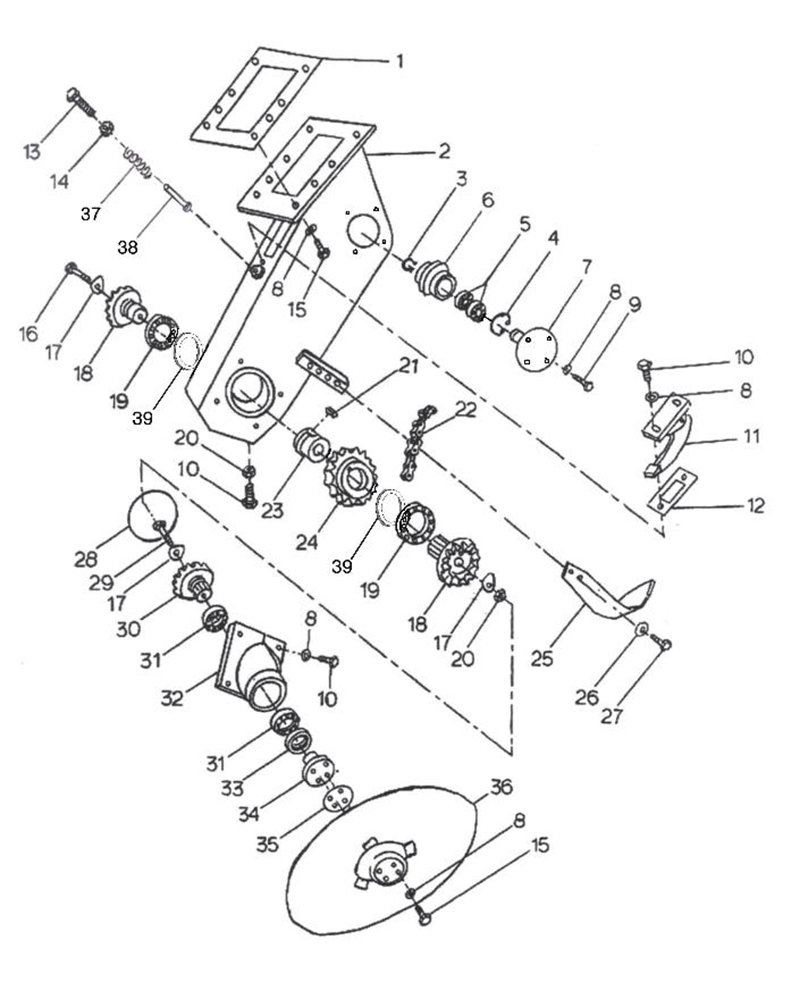

中間傳動鏈盒組合
|
序號 |
圖號 |
品名 |
規格 |
數量 |
備注 |
|
1 |
|
紙墊(鏈盒) |
|
1 |
|
|
2 |
|
鏈盒 |
|
1 |
|
|
3 |
|
卡簧 |
S25 |
1 |
|
|
4 |
|
卡簧 |
R62 |
1 |
|
|
5 |
|
側軸承 |
#6305 |
2 |
|
|
6 |
|
中間鏈條齒輪 |
|
1 |
|
|
7 |
|
鏈條軸 |
|
1 |
|
|
8 |
|
彈簧墊 |
M12 |
29 |
|
|
9 |
|
螺絲 |
M12XP1.25XL20 |
3 |
|
|
10 |
|
螺絲 |
M12XP1.25XL25 |
11 |
|
|
11 |
|
鏈條松緊件 |
|
1 |
|
|
12 |
|
紙墊(鏈條松緊件) |
|
1 |
|
|
13 |
|
螺絲 |
UNF3/4-16 |
1 |
|
|
14 |
|
螺帽 |
UNF3/4-16 |
1 |
|
|
15 |
|
螺絲 |
M12XP1.25XL30 |
16 |
|
|
16 |
|
螺絲 |
M12XP1.25XL90 |
1 |
|
|
17 |
|
固定墊 |
M12 |
4 |
|
|
18 |
|
17傘齒(主軸用) |
|
2 |
|
|
19 |
|
軸承 |
#6011 |
2 |
|
|
20 |
|
螺帽 |
M12XP1.25 |
2 |
|
|
21 |
|
軸銷 |
|
1 |
|
|
22 |
|
鏈條 |
RS80X64L |
1 |
|
|
23 |
|
主軸 |
|
1 |
|
|
24 |
|
19齒輪 |
80號鏈條用 |
1 |
|
|
25 |
|
刀片 |
深耕R |
1 |
|
|
26 |
|
彈簧墊 |
M14XP1.5 |
2 |
|
|
27 |
|
螺絲 |
M14XP1.5XL35 |
2 |
|
|
28 |
|
O圈 |
G120 |
2 |
|
|
29 |
|
螺帽 |
M12XP1.25XL60 |
2 |
????:30 |
|
30 |
|
17傘齒(中間軸用) |
|
2 |
|
|
31 |
|
軸承 |
#32008 |
4 |
|
|
32 |
|
中間圓盤傳動組 |
|
2 |
|
|
33 |
|
油封 |
?45X?75X12 |
2 |
|
|
34 |
|
傳動軸座 |
|
2 |
|
|
35 |
|
固定板 |
|
?? |
|
|
36 |
|
圓盤(中間) |
20" |
2 |
|
|
37 |
|
鏈條調整件彈簧 |
|
1 |
|
|
38 |
|
鏈條調整件螺絲 |
|
1 |
|
|
39 |
|
軸承盒 |
|
2 |
|
|
40 |
|
|
|
|
|
